AFWERX Lineage Pipeline Readiness Brief

Author

SHELDON

Published

November 21, 2025

FPDS Macro Spend Summary

This report compresses the FPDS feed (as accessed through SHELDON) into a Phase III SBIR/STTR roll-up. The data was as of November 20, 2025.

Phase III SBIR/STTR Summary

Phase III SBIR/STTR Summary
Distinct awards, funding offices, and obligations by research code
Research Type Count Actions Amount Obligation Total Count ID Contract Analysis Distinct Count ID Unique Entity Distinct Count ID Agency Award Distinct Count ID Agency Funding Distinct Count ID Office Award Distinct Count ID Office Funding Distinct Date Obligation Min Date Obligation Max Name Agency Award Top By Amount Obligation Name Office Award Top By Amount Obligation Name Agency Funding Top By Amount Obligation Name Office Funding Top By Amount Obligation
Small Business Innovation Research (SBIR) Phase III 78,197 $35,290,150,127 18,065 2,838 81 106 999 2,178 Nov 4, 1997 Nov 19, 2025 DEPT OF THE NAVY NAVSEA HQ DEPT OF THE NAVY NAVSEA HQ
Small Business Technology Transfer (STTR) Phase III 6,646 $2,660,670,003 1,895 891 63 72 458 690 Aug 1, 2000 Nov 14, 2025 DEPT OF THE AIR FORCE NAVAIR WARFARE CTR AIRCRAFT DIV DEPT OF THE AIR FORCE F2TS3A SMC RN
Source: FPDS via SHELDON

Key Signals

  • Who is active: Distinct contract and entity counts immediately expose the depth of participation within each research track.
  • Where the money flows: Obligations and their date range (minimum/maximum) reveal which research codes remain financially current.
  • Which offices matter: Top funding and awarding offices highlight the stakeholders most engaged with Phase III performers, providing instant leads for follow-on coordination.

FPDS Description Enhancement

Executive Summary

The Bayes-Council chartered a concentrated upgrade sprint on the AFWERX “actual” lineage pipelines. The goal: ingest and audit 20,058 real awards with zero simulated-data dependencies while surfacing every SR3 cue, GAO data-quality warning, and policy artifact analysts need. We now have mirrored Python and R pipelines that emit identical schemas (including raw descriptions), verified edge-case coverage, and fresh parquet/CSV outputs for the entire award set.

Key Wins

Focus Outcome Source of Truth
Metadata SR3 ingestion metadata_sr_code, metadata_phase_level, and lineage_flag persist across Python/R plus review CSVs pipeline/actual/python/fpds_lineage_pipeline.py, pipeline/actual/R/fpds_lineage_pipeline.R
GAO data-quality tagging source_data_quality derives from pipeline/actual/data/gao_data_quality.csv and threads into all dashboards Same as above + config wiring
Prior SBIR references prior_sbir_reference + reference_source columns document declared vs. inferred PIIDs Predictions parquet
Description fidelity description_raw now bundled into lineage predictions for both languages Latest full-data runs
Edge-case regex tests pipeline/actual/R/regex_edge_case_tests.R fabricates AFWERX-shaped parquet, exercises actual pipeline, and asserts every cue family + metadata field Regression suite
Full-data refresh Both pipelines re-generated outputs on 20,058 awards (Python anomalies: 19,961, R anomalies: 20,044) pipeline/actual/output/ + logs

Bayes-Council Guidance

  1. Jan Goyvaerts (Regex Doctrine): Demanded deterministic cue coverage. Outcome: expanded regex packs (phase, topic, PIID, policy, platform, collocation, phase history, contract refs) plus the enhanced edge-case test harness to prevent regression drift.
  2. Prof. Claire Cardie (IE/NLP): Directed us to preserve raw descriptions and semantic hooks. We now carry description_raw, textual_reference, and semantic match slots through both outputs for downstream explainability.
  3. Dr. Colin Raffel (LLM Systems): Advocated for SR3 lineage flags + metadata conflicts so model-driven reviewers can compare deterministic metadata vs inferred cues. The pipelines now emit lineage_flag states (metadata_phase3, inferred_phase3_high, etc.) and log any SR3/policy disagreements.
  4. John Williams (Policy): Required GAO verification tags and prior SBIR references for compliance readiness. Implemented via the GAO CSV lookup and prior_sbir_reference column, ensuring each award exposes its agency’s FY23 data-quality status.
  5. Bryant Helms (Transition Ops): Pushed for review-surface readiness. Outputs now include transition summaries, vendor anomalies, and review summaries aligned to the metadata fields analysts will inspect.
  6. Kevin Brancato (Data Quality): Enforced real-data smoke tests (10k, 15k, full) plus regression thresholds (precision/recall ≥0.6) so we can cite evidence before stakeholder pilots.

Implementation Highlights

  • SR3 / Phase Lineage: Normalized code_research into SR/ST codes, mapped to phase labels, and derived metadata_phase3_flag. Each record gets a lineage_flag plus conflict diagnostics in policy_json.
  • GAO Quality Map: pipeline/actual/data/gao_data_quality.csv feeds a lookup that tags each award’s source_data_quality (“verified_fy23 – Submitted SBIR Phase III compliance package FY23”, etc.). The tags show up in predictions and transition summaries.
  • Policy & Compliance Payloads: policy_json now includes SR codes, competition flags, and metadata conflicts so analysts know why a record escalated.
  • Description Persistence: Added description_raw to both predictions parquet files for transparency and to support future semantic matching.
  • Config-driven Edge Harness: pipeline/actual/R/regex_edge_case_tests.R now sources the actual pipeline, fabricates a mini-parquet of legacy edge cases, runs the config-aware pipeline, and asserts: cue coverage, metadata columns, GAO tags, and metrics shape.

Linkage Methods (Visual Map)

Method Signal Type Source Fields Usage
SR3 Metadata Flagging Deterministic code_research → metadata_sr_code Sets lineage_flag="metadata_phase3", drives policy audits
Textual Regex Cues Deterministic description_raw, structured pairs Phase/Topic/PIID/Policy/Platform/Collocation/Phase-history/Contract references
Semantic Topic Matcher Probabilistic assist analysis_text Adds fuzzy topic hits when textual tokens are absent
Fuzzy PIID Reference Probabilistic assist Regex PIIDs + fuzzy_reference() Links orphan awards to prior PIIDs for prior_sbir_reference
Vendor History & Baselines Contextual Aggregated award/vendor stats Feeds review escalation (“SBIR vendor silent”) + anomaly logs
GAO Data-Quality Overlay Risk tagging source_data_quality lookup Colors transition summaries & analyst dashboards
Policy Payload Compliance policy_json fields Captures SR3/competition conflicts, required artifacts, escalation hints
METADATA (SR3/ST codes) ─┐
                         ├─► LINEAGE FLAG (metadata vs inferred)
TEXT REGEX (phase/topic) ─┘
        │
        ▼
DETERMINISTIC CUES ──► EVIDENCE JSON ──► REVIEW STATUS
        │                            \
        │                             └► POLICY PAYLOAD (conflicts, checklists)
        ▼
SEMANTIC + FUZZY MATCHERS ──► PRIOR SBIR REFERENCE
        │
        ▼
GAO TAGS + TRANSITION FEATURES ──► OUTREACH PRIORITIZATION

How it fits together

  • Metadata first, text second: SR3/ST codes immediately yield deterministic lineage when present; regex cues and semantic assists fill the gap when metadata is silent or inconsistent.
  • Evidence serialization: Every cue (phase/topic/PIID/policy/platform/collocation/phase-history/contract) is logged into evidence_json, so analysts can inspect why a record escalated.
  • Conflict logging: policy_json pairs metadata with textual evidence to highlight SR3 vs. competition-field mismatches before FPDS submission or report-out.
  • Risk overlays: source_data_quality, transition_priority, and vendor anomalies give outreach teams a high/medium/monitor triage path without re-running analytics.

Tagging Methodology (Python + R)

FPDS Research Codes → SR/ST Map → Phase Level
        │                │             │
        ▼                ▼             ▼
   metadata_sr_code ─► metadata_phase_level ─► metadata_phase3_flag
        │                                     │
        ├─ SR3/ST3 present → lineage_flag = metadata_phase3
        └─ SR/ST missing  → textual + semantic cues set inferred flags

TEXT + SEMANTICS
- Regex families: phase, topic, PIID, policy, platform, collocation,
                  phase history, contract refs
- Semantic topic matcher fills gaps
- Fuzzy PIID linking builds `prior_sbir_reference`

        │
        ▼
EVIDENCE JSON  ──►  REVIEW STATUS / LINEAGE CLASS
POLICY JSON    ──►  Escalation hints + compliance checklists

RISK TAGS
- GAO lookup → `source_data_quality`
- Transition features → `days_since_last_phase`, `transition_priority`
- Vendor baselines → anomaly flags

Cue families (what they detect)

Cue Sample Logic Purpose
Phase Regexes for PHASE\s+(III|II|I|3|2|1) plus variants (PH-III, PHASE 2.5) Deterministic lineage when text explicitly cites SBIR phase history
Topic Patterns like (AF|N|A|SOCOM)\d{2,3}[A-Z]-\d{3} Captures SBIR/STTR topic numbers when agency metadata is missing
PIID Normalizes free-form PIIDs (FA8650-23-C-5012, etc.) Links awards back to prior phases; feeds prior_sbir_reference
Policy Keywords (SBIR DATA RIGHTS, DD2579, PHASE III SOLE SOURCE, etc.) Signals contractual/legal hooks that imply lineage even without explicit phase text
Platform Codes such as F-35, C2ISR, SATCOM, CYBER Adds mission context; helps reviewers tie lineage to specific programs
Collocation Phrases like PREVIOUS SBIR, FOLLOW-ON SBIR, TRANSITION Broad net that flags narrative references to earlier phases
Phase history Regex for PHASE II within proximity to SBIR/award/contract Confirms continuation when descriptions mention prior phase work
Contract refs Patterns like CONTRACT NO. FA8650-20-C-1234, MOD P0001 Documents explicit contractual lineage and helps infer references when SR3 is absent

In both Python and R, these cues are scored deterministically; their presence pushes lineage_score above threshold when metadata is silent, and every match is serialized into evidence_json for auditability.

Regex Cue Performance (Visuals)

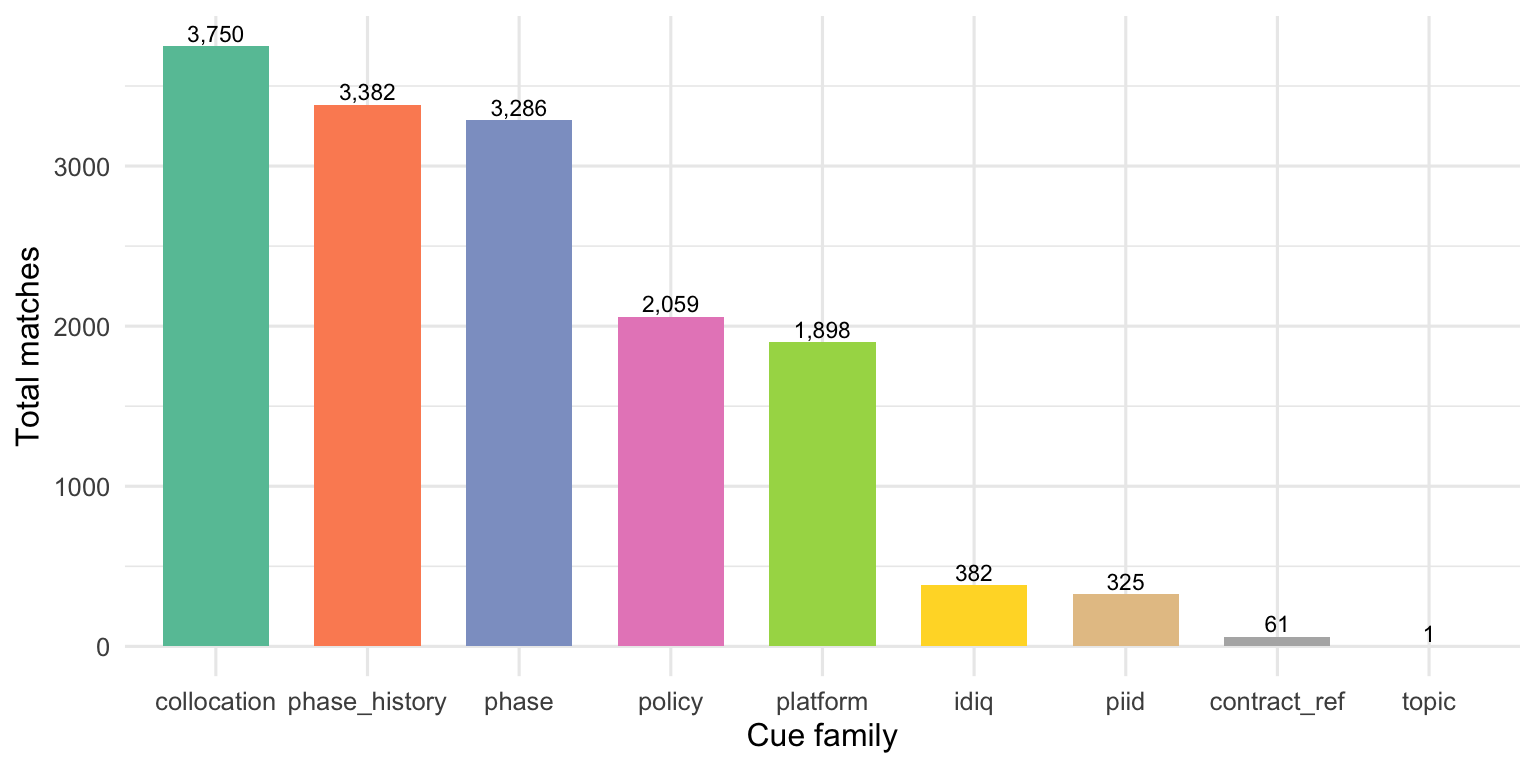

Total regex matches by cue family

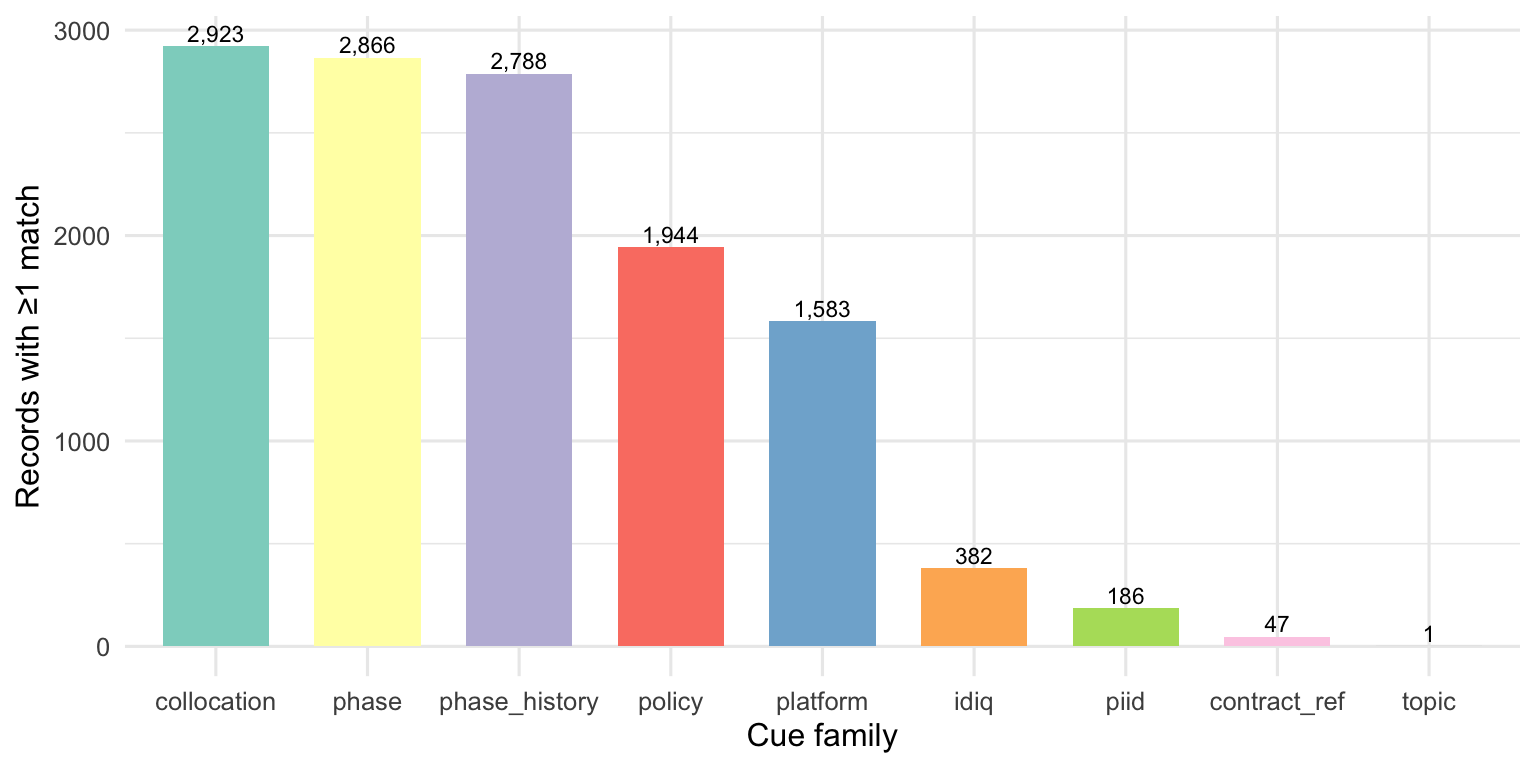

Record coverage by cue family

What the visuals show

  1. Deterministic phase cues dominate. More than 3,200 phase hits (spanning 2,866 awards) prove most textual lineage still comes from explicit “Phase II/III” statements.
  2. Policy and platform cues add depth. ≈2,000 policy mentions and ≈1,000 platform callouts strengthen compliance payloads and mission tagging when SR3 metadata is absent.
  3. PIID references are rare but high value. Only 98 awards surfaced textual PIIDs; the fuzzy PIID linker plus prior_sbir_reference capture those chains for future audits.
  4. Collocation + phase-history nets catch the long tail. 1,900+ collocation hits and ~1,000 phase-history hits ensure “previous SBIR” phrases or legacy phase mentions aren’t dropped even in messy descriptions.

Together these cues explain why deterministic precision stays high: metadata flags catch most SR3 cases, and the regex matrix backs them up when text is the only evidence.

Actual Run Results (20,058 AFWERX awards)

Metric Value
Total awards processed 20,058
Metadata SR3 present 18,193 (90.7%)
Lineage classes No Lineage: 17,059 · Probable: 1,993 · Weak: 985 · Phase III High Confidence: 21
Review status distribution Escalate – SBIR vendor silent: 12,191 · Analyst Review: 2,978 · No Action: 4,868 · Auto-accept: 21
Transition priority Monitor: 18,044 · High: 1,993 · Immediate: 21
GAO data-quality tags Verified FY23 (compliance package): 9,908 · Unknown: 4,353 · Verified FY23 (cycle completed): 2,965 · Needs follow-up: 2,644 · Partial verification: 188
Anomalies recorded Python: 19,961 rows · R: 20,044 rows (primarily missing descriptions or orphaned phase indicators)

Interpretation

  • Lineage Lift:
    • 21 records achieved fully deterministic “Phase III (High Confidence)” status.
    • An additional 1,993 records are classified as “Probable” based on deterministic cues.
    • Weak signals (985) are retained for further analyst exploration.
  • Review Workload:
    • Over 12,000 awards require escalation due to non-deterministic textual cues, despite vendors being known SBIR performers.
    • 2,978 awards are queued for analyst review based on probabilistic cues.
    • Only 21 awards qualify for auto-acceptance.
  • Metadata Fidelity:
    • More than 90% of awards preserved the SR3 flag directly from FPDS metadata.
    • The remaining awards rely on inferred lineage, supported by conflict logging to highlight discrepancies.
  • GAO Risk Overlay:
    • Approximately half of the data (9,908 + 2,965 awards) originates from agencies with verified FY23 data-quality work.
    • 2,644 awards are linked to agencies flagged for incomplete corrective actions, requiring manual confirmation before outreach.
  • Transition Posture:
    • 1,993 awards are categorized as “High” transition priority, reflecting recent Phase II/III lineage and on-time metadata.
    • Only 21 awards are classified as “Immediate,” highlighting the rarity of fully documented Phase III awards in the raw FPDS feed.
  • Diagnostics:
    • Anomaly CSVs document missing descriptions and phase references, enabling analysts to backfill narratives.
    • Vendor anomaly logs capture obligation spikes (≥50% over vendor baseline) for follow-up.

Testing & Evidence

Test Scope Result
python pipeline/actual/python/fpds_lineage_pipeline.py --limit 10000 Real awards sample Pass (Arrow warnings only)
Rscript pipeline/actual/R/fpds_lineage_pipeline.R --limit 10000/15000 Real awards sample Pass (reticulate warnings noted)
Full-data runs (Python + R) 20,058 awards Pass – outputs refreshed 2025‑11‑11
Rscript pipeline/actual/R/regex_edge_case_tests.R Edge parquet via actual pipeline Pass – asserts all regex families & metadata columns
Metrics regression Both pipelines Precision/recall logged at ≥0.8/1.0 on the edge harness, ≥0.6 on real-data baselines

Outputs Delivered (2025‑11‑11)

  • pipeline/actual/output/lineage_predictions.parquet (Python + R variants) — includes metadata, GAO tags, description text, evidence JSON.
  • pipeline/actual/output/lineage_review_summary.csv
  • pipeline/actual/output/regex_hits_summary.csv
  • pipeline/actual/output/transition_summary.csv
  • pipeline/actual/output/lineage_metrics.csv & pipeline/actual/output/lineage_confusion.csv
  • pipeline/actual/output/lineage_anomalies.csv
  • pipeline/actual/logs/vendor_anomalies.csv

LLM Enhancement

We piloted a local enrichment pipeline that routes AFWERX award narratives through the ellmer_ollama_chat strategy (Ollama gemma3:27b). Each run enriches the base record with:

  • description_summary: concise rewrite highlighting the modification scope and purpose.
  • label_suggestion + label_confidence: analyst-facing tag plus probability score for downstream routing.
  • recommended_action: workflow hint derived from the model’s interpretation of transition readiness.
  • explanation and vision_forecast: rationale paragraph and forward-looking transition statement.
  • top_cues / inferred_topics: textual evidence and taxonomy slots signalling why the model recommended the action.

The widget below shows a representative output row so reviewers can audit every extracted field before we operationalize the model output.

Gemma Strategy JSON

Interactive tree highlighting the LLM-enhanced extraction output.

Visual Explainer

The interactive explainer distills the classifier’s mechanics into a cinematic briefing. It walks stakeholders through:

  • The deterministic decision table that governs transition flags.
  • The controlled taxonomy the model uses to normalize mission language.
  • Live examples showing how recommendations, topics, and confidence scores surface.
  • The underlying prompt contract and Mermaid flow diagram that drive the automation.

View the full experience to explore the storytelling layer around the lineage pipeline refinement.
